Designio2 Glass Inset Gas Fire

Description
Facts
Options
Tech Specs

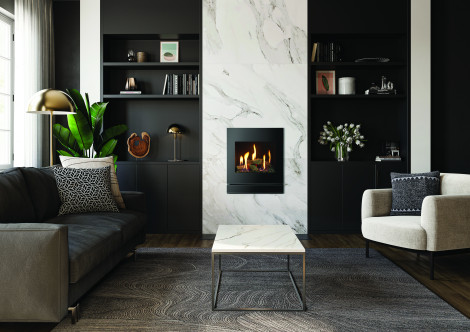

The Designio2 Glass gas fire offers great appeal with its thoroughly contemporary and cutting edge design. Similar in form to the Designio2 Steel, this stylish inset gas fire has a shining black glass finish and will make a stunning focal point in the room, even when the fire is off.

Suitable for both hearth mounting and inbuilt installations further up the wall, this inset gas fire is the perfect complement to the 16″ Logic™ HE range.

This inset is available with a choice of either Logs or Coal fuel effects and comes with three different control types: Manual control, Slide control or, for the absolute convenience, a Remote control for the ultimate luxury heating experience.

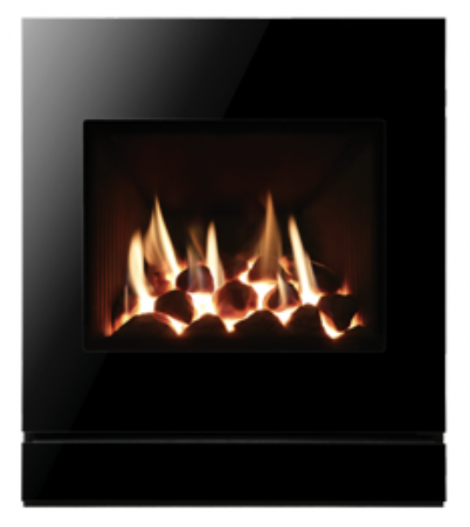

Designio2 Glass Inset Gas Coals Conventional Flue
Efficiency	89%
Heat out put	4.10 kW
Efficiency rating	B
Vent required	No
Manual control	Yes
Slide control	Yes
Remote control	Yes
Opening dimensions	410 x 560 mm (w x h)
Frame Size	519 x 660 mm (w x h)

Designio2 Glass Inset Gas Logs Conventional Flue
Efficiency	84%
Heat out put	3.90 kW
Efficiency rating	C
Vent required	No
Manual control	No
Slide control	Yes
Remote control	Yes
Opening dimensions	410 x 560 mm (w x h)
Frame Size	519 x 660 mm (w x h)

Designio2 Glass Inset Gas Coals Balanced Flue
Efficiency	86%
Heat out put	3.30 kW
Efficiency rating	C
Vent required	No
Manual control	Yes
Slide control	Yes
Remote control	Yes
Opening dimensions	420 x 560 mm (w x h)
Frame Size	519 x 660 mm (w x h)

Designio2 Glass Inset Gas Logs Balanced Flue
Efficiency	86%
Heat out put	3.40 kW
Efficiency rating	C
Vent required	No
Manual control	No
Slide control	Yes
Remote control	Yes
Opening dimensions	420 x 560 mm (w x h)
Frame Size	519 x 660 mm (w x h)
