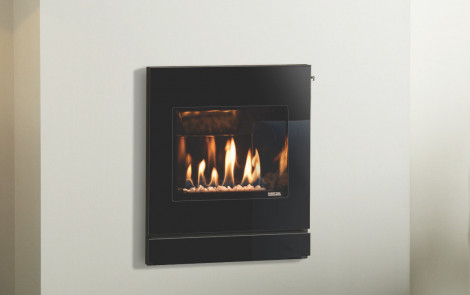

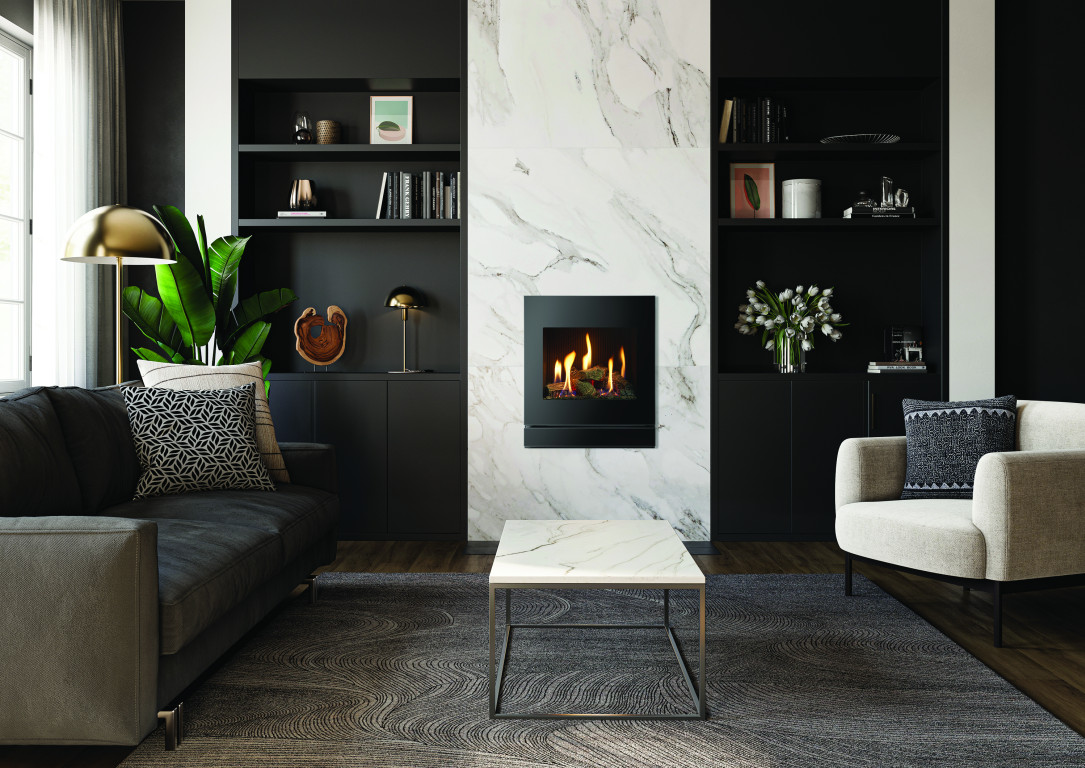

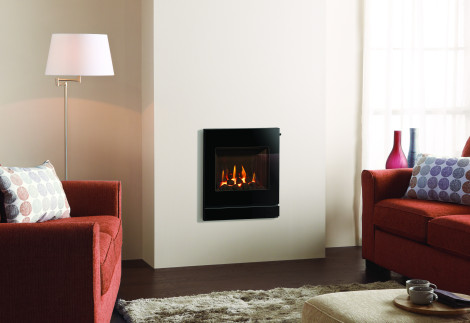

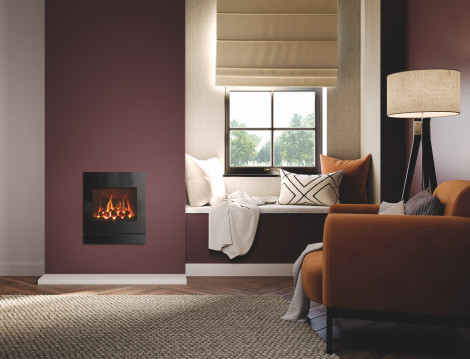

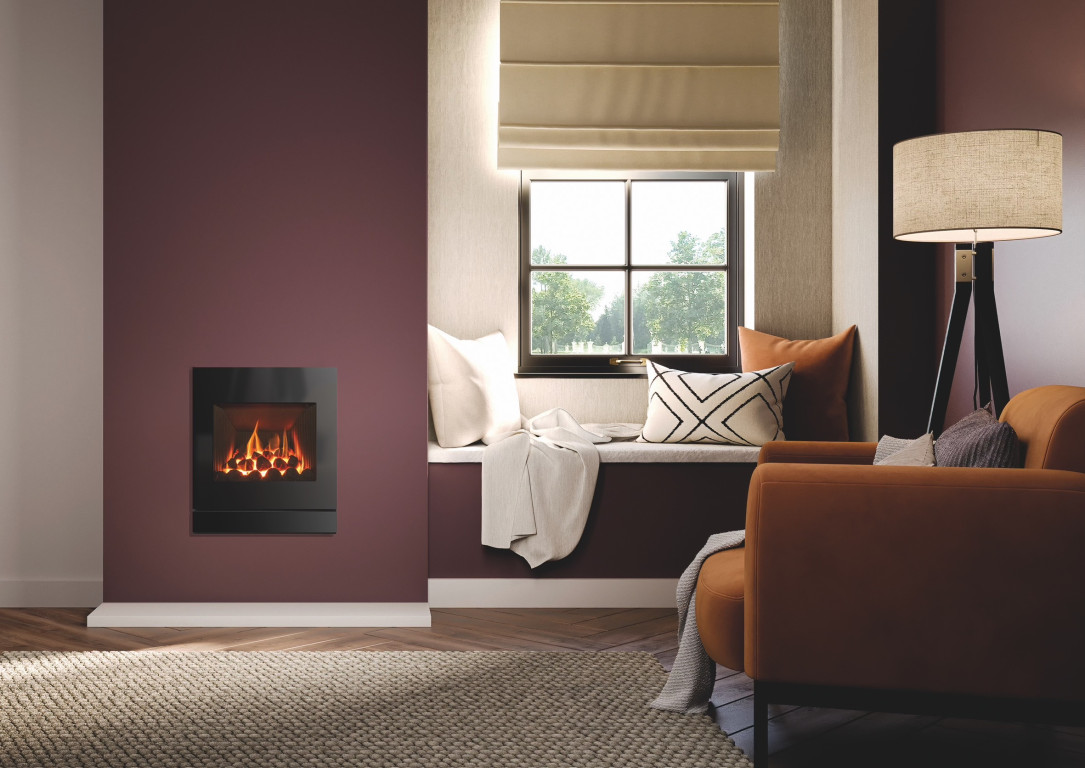

The Designio2 Glass gas fire offers great appeal with its thoroughly contemporary and cutting edge design. Similar in form to the Designio2 Steel, this stylish inset gas fire has a shining black glass finish and will make a stunning focal point in the room, even when the fire is off.
Suitable for both hearth mounting and inbuilt installations further up the wall, this inset gas fire is the perfect complement to the 16″ Logic™ HE range.
This inset is available with a choice of either Logs or Coal fuel effects and comes with three different control types: Manual control, Slide control or, for the absolute convenience, a Remote control for the ultimate luxury heating experience.
Designio2 Glass Inset Gas Coals Conventional Flue | |
Efficiency | 89% |
Heat out put | 4.10 kW |
Efficiency rating | B |
Vent required | No |
Manual control | Yes |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 410 x 560 mm (w x h) |
Frame Size | 519 x 660 mm (w x h) |
Designio2 Glass Inset Gas Logs Conventional Flue | |
Efficiency | 84% |
Heat out put | 3.90 kW |
Efficiency rating | C |
Vent required | No |
Manual control | No |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 410 x 560 mm (w x h) |
Frame Size | 519 x 660 mm (w x h) |
Designio2 Glass Inset Gas Coals Balanced Flue | |
Efficiency | 86% |
Heat out put | 3.30 kW |
Efficiency rating | C |
Vent required | No |
Manual control | Yes |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 420 x 560 mm (w x h) |
Frame Size | 519 x 660 mm (w x h) |
Designio2 Glass Inset Gas Logs Balanced Flue | |
Efficiency | 86% |
Heat out put | 3.40 kW |
Efficiency rating | C |
Vent required | No |
Manual control | No |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 420 x 560 mm (w x h) |
Frame Size | 519 x 660 mm (w x h) |
Designio2 Glass Inset Gas |
Logs |
Coal |
Conventional flue |
Balanced Flue |
Manual Control |
Slide Control |
Remote control |
For further PDF information click the link below:
Logic HE Balanced Flue Combined Controls Installation & User Instructions
Logic HE Balanced Flue Log Installation & User Instructions
Logic HE Conventional Flue Combined Controls Installation & User Instructions
Logic HE Range Conventional Flue Log Effect Installation & User Instructions
