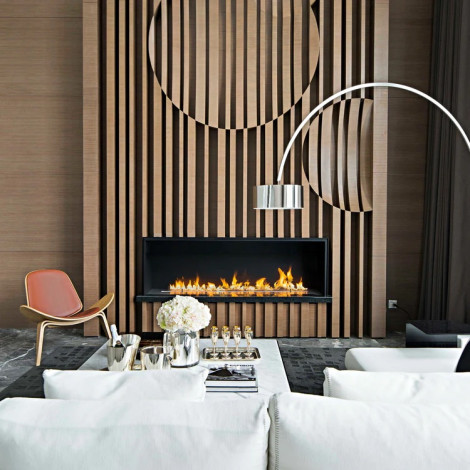

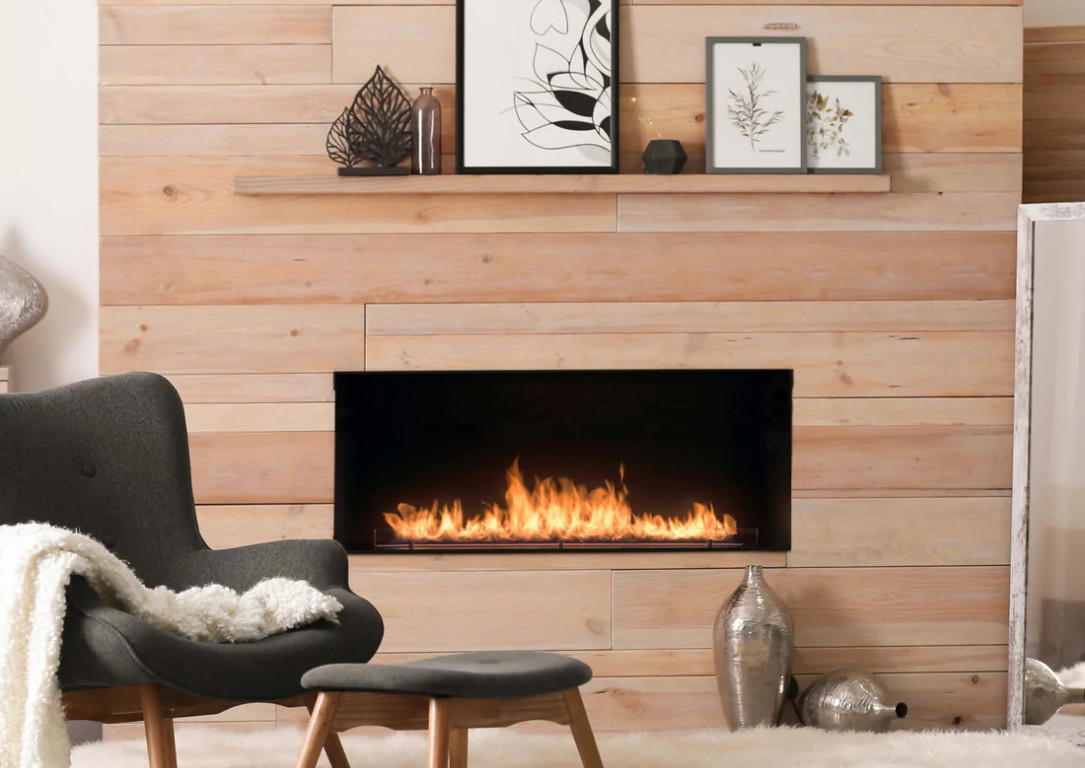

Perfectly suitable for any unique design or sophisticated project - this version of Planika's most technologically advanced fireplace, FLA3, comes in a FORMA integrated casing. This pre-assembled black metal casing allows for many exciting and creative installation options - available in different shapes and sizes.
Its self-contained construction means your fireplace can be framed into wood or metal studs, providing installation freedom and flexibility for builders and creating a striking addition to a feature wall. It comes with an automatic fuel pump and can be turned on and controlled via a smartphone from the comfort of your seat.
Forma 1200 Single sided with FLA3 990 | |
Burner model | FLA3 990 (BEV Technology®) |
Fuel tank capacity | 5.5L |
Maximum burn time | 10 hours |
Maximum heat output | 7.0 kW |
Minimum room cubature | 70m3 |
Flame height regulation | 6 stages |
Weight | 74.6 kg |
Fuel type | bioethanol 86 - 96,6% |
Flue | not required |
Air change rate | 1 space volume per hour |
Power supply | 230 V |
Finish | black powder coating |
Materials | steel, galvanised steel, toughened glass |
Application | for indoor use only |
Forma with FLA3 Ethanol Burner also comes in a range of configurations: | ||
Island | ||
Single Sided | ||
Left/Right Corner | ||
Three Sided | ||
Room Divider | ||
Tunnel | ||
Forma with FLA3 Ethanol Burner also comes in six of sizes: | ||
1000mm | ||
1200mm | ||
1500mm | ||
1800mm | ||
2300mm | ||
2700mm |
For further PDF information click the link below:
Forma 1200 Single sided with FLA 990 Automatic Ethanol Burner Fitting Instructions
Forma 1200 Single side with FLA 990 Automatic Ethanol Burner Tech Sheet
