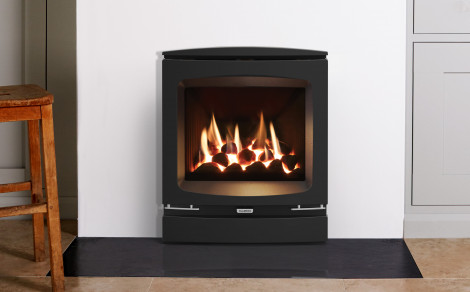

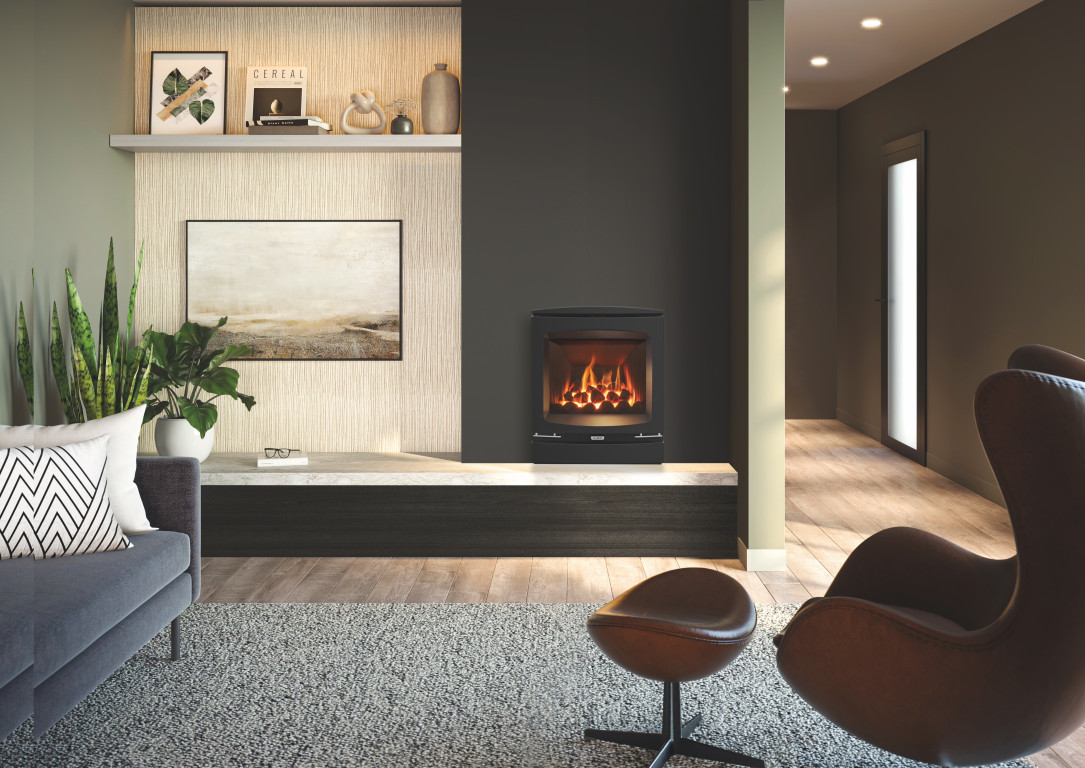

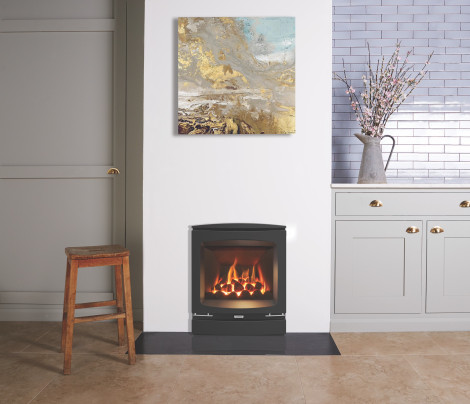

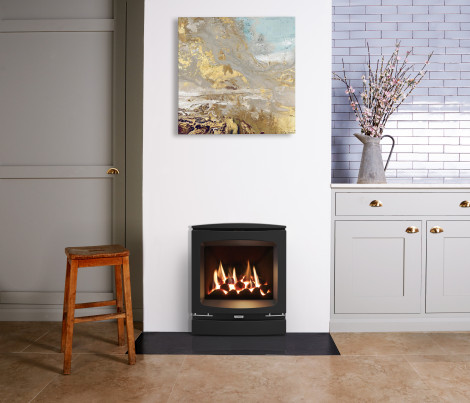

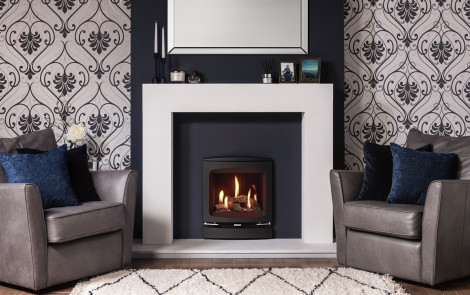

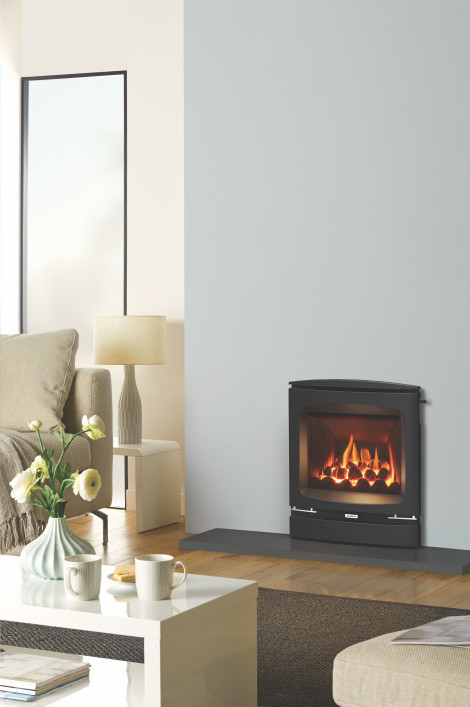

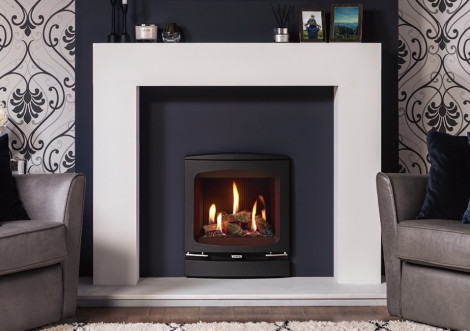

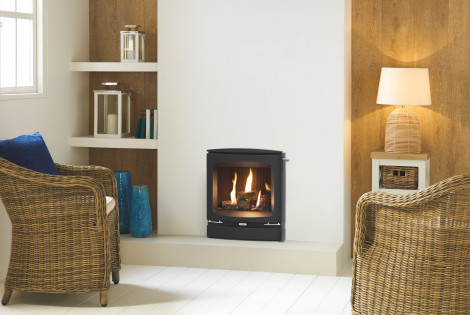

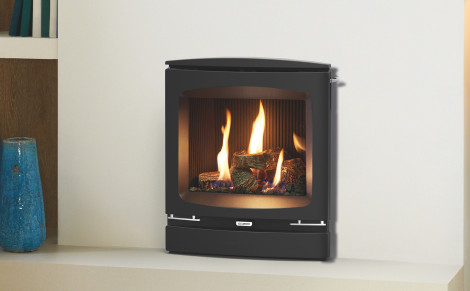

An all-new styling option for the high efficiency Logic HE range, the Gazco Vogue front offers an inset stove aesthetic. Featuring a cast iron construction with stainless steel detailing, the front is compatible with Slide, Manual and Remote control Logic HE models.
This inset is available with a choice of either Logs or Coal fuel effects and comes with three different control types: Manual control, Slide control or, for the absolute convenience, a Remote control for the ultimate luxury heating experience.
Vogue Inset Gas Coals Conventional Flue | |
Efficiency | 89% |
Heat out put | 4.10 kW |
Efficiency rating | B |
Vent required | No |
Manual control | Yes |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 410 x 560 mm (w x h) |
Frame Size | 503 x 604 mm (w x h) |
Vogue Inset Gas Logs Conventional Flue | |
Efficiency | 84% |
Heat out put | 3.90 kW |
Efficiency rating | C |
Vent required | No |
Manual control | No |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 410 x 560 mm (w x h) |
Frame Size | 503 x 604 mm (w x h) |
Vogue Inset Gas Coals Balanced Flue | |
Efficiency | 86% |
Heat out put | 3.30 kW |
Efficiency rating | C |
Vent required | No |
Manual control | Yes |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 420 x 560 mm (w x h) |
Frame Size | 503 x 604 mm (w x h) |
Vogue Inset Gas Log Balanced Flue | |
Efficiency | 86% |
Heat out put | 3.40 kW |
Efficiency rating | C |
Vent required | No |
Manual control | No |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 420 x 560 mm (w x h) |
Frame Size | 503 x 604 mm (w x h) |
Tempo Inset Gas |
Polished Stainless Steel |
Brushed Stainless Steel |
Matt Black |
Logs |
Coal |
Conventional flue |
Balanced Flue |
Manual Control |
Slide Control |
Remote control |
For further PDF information click the link below:
Logic HE Balanced Flue Combined Controls Installation & User Instructions
Logic HE Balanced Flue Log Installation & User Instructions
Logic HE Conventional Flue Combined Controls Installation & User Instructions
Logic HE Range Conventional Flue Log Effect Installation & User Instructions
